ZE1820

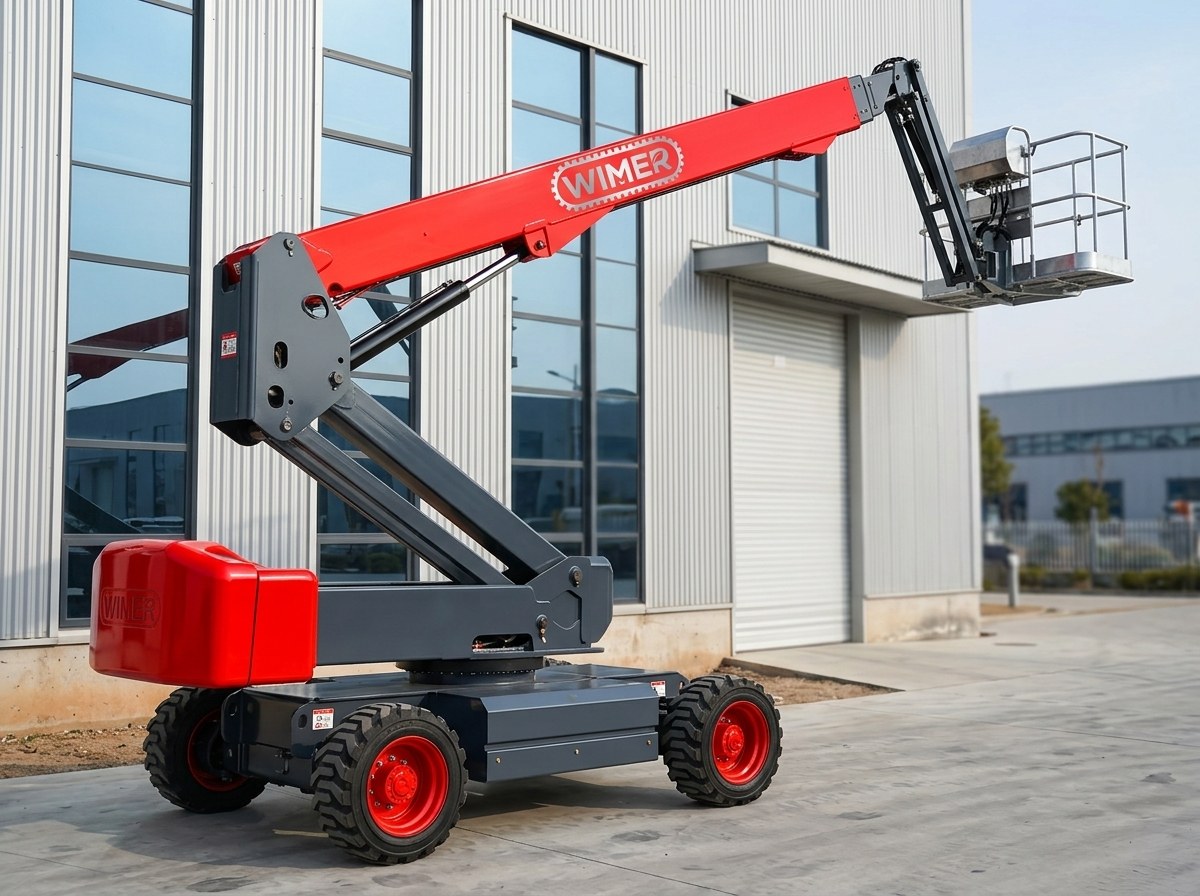

ZE1820 Electric Articulated Boom Lift

100% electric self-propelled articulated boom lift · 48V/500Ah LiFePO4 lithium battery · 20.5 m working height · 4WD drive with dual steering · Continuous 360° turret · Zero emissions

Working height

20.5 m

Platform height

18.5 m

Horizontal outreach

13.2 m

Basket capacity

300 kg

Download datasheet (PDF) Get a quote on WhatsApp

High-performance 100% electric self-propelled articulated boom lift designed for indoor and outdoor operations requiring zero emissions and silent operation. Equipped with a deep-cycle 48V / 500Ah (24.0 kWh) LiFePO4 lithium battery pack, 4WD all-wheel drive with dual turning steering, articulating jib and continuous 360° turret rotation. Its Curtis CAN-bus electronic control architecture, SANT (HydraForce USA) proportional valving and automatic basket leveling system deliver millimeter-precise maneuvering, maximum safety compliance to EN 280 / CE standards, and an unrestricted 300 kg load capacity across the entire working envelope.

Technical specifications

Electric system & lithium battery

Battery technology: Lithium iron phosphate (LiFePO4)
Cell manufacturer: TianNeng / AVIC
Voltage & capacity: 48 V / 500 Ah (24.0 kWh)
Smart charger: GPD High Frequency 48 V / 60 A
Charging input: 110 V / 220 V AC single / split phase
Operating autonomy: 8 to 10 h (full shift)
Battery cycle life: > 3 500 cycles (80% DOD)
Electric traction motor: WNM 3.3 kW 3-phase AC asynchronous
Hydraulic pump motor: 12.0 kW high-efficiency AC electric motor
Control voltage: 12 V DC

Lifting system & platform

Boom type: Articulated with articulating jib
Max. working height: 20.50 m
Max. platform height: 18.50 m
Max. horizontal outreach: 13.20 m
Platform dimensions (L × W): 1.80 × 0.76 m
Guardrail height: 1.10 m
Rated load capacity: 300 kg
Platform occupancy: 3 persons + tools
Platform rotation: ±80° (160° total)
Jib rotation: ±70° (140° total)
Turret rotation: 360° continuous
Basket levelling: Automatic electro-hydraulic (±1.5°)

Drive, steering & OEM components

Drive / steer mode: 4WD with dual turning steering
Speed — stowed: 4.80 km/h
Speed — elevated: 0.80 – 1.10 km/h (hare/tortoise switch)
Gradeability: 45 %
Max. working tilt angle: 3.0° (alarm and safety cut-out)
Outside turning radius: 5.00 m
Electronic controller: Curtis (USA) CAN-bus
Main hydraulic pump: CRH High Pressure Gear Pump
Valve block: SANT (HydraForce USA) / Rexroth System
Wheel reducers: Infinity Heavy Duty
Standard tyres: Topower solid off-road 33×12-20
Operating weight: 8 520 kg

Transport dimensions

Length (stowed): 9.80 m
Width (stowed): 2.49 m
Height (stowed): 2.26 m
Wheelbase: 2.50 m
Ground clearance (centre): 0.30 m (300 mm)
Basket dimensions (L × W × H): 1.80 × 0.76 × 1.10 m
Machine weight: 8 520 kg

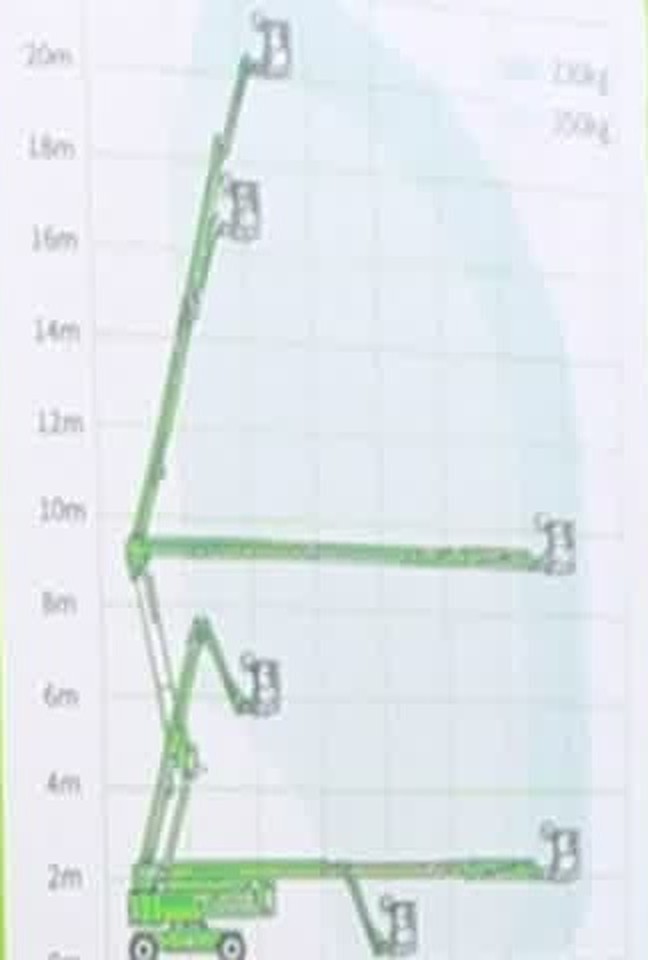

Working range & envelope

Max. working height: 20.50 m
Max. platform height: 18.50 m
Max. horizontal outreach: 13.20 m
Capacity across envelope: 300 kg unrestricted
Turret rotation: 360° continuous
Jib rotation: 140° (±70°)
Platform rotation: 160° (±80°)

Standard equipment

Deep-cycle 48V / 500Ah (24 kWh) LiFePO4 lithium battery pack and GPD 48V / 60A smart charger
4WD drive with dual turning steering for agile tight-space maneuvering
Curtis (USA) electronic controller with CAN-bus architecture and fault diagnostics

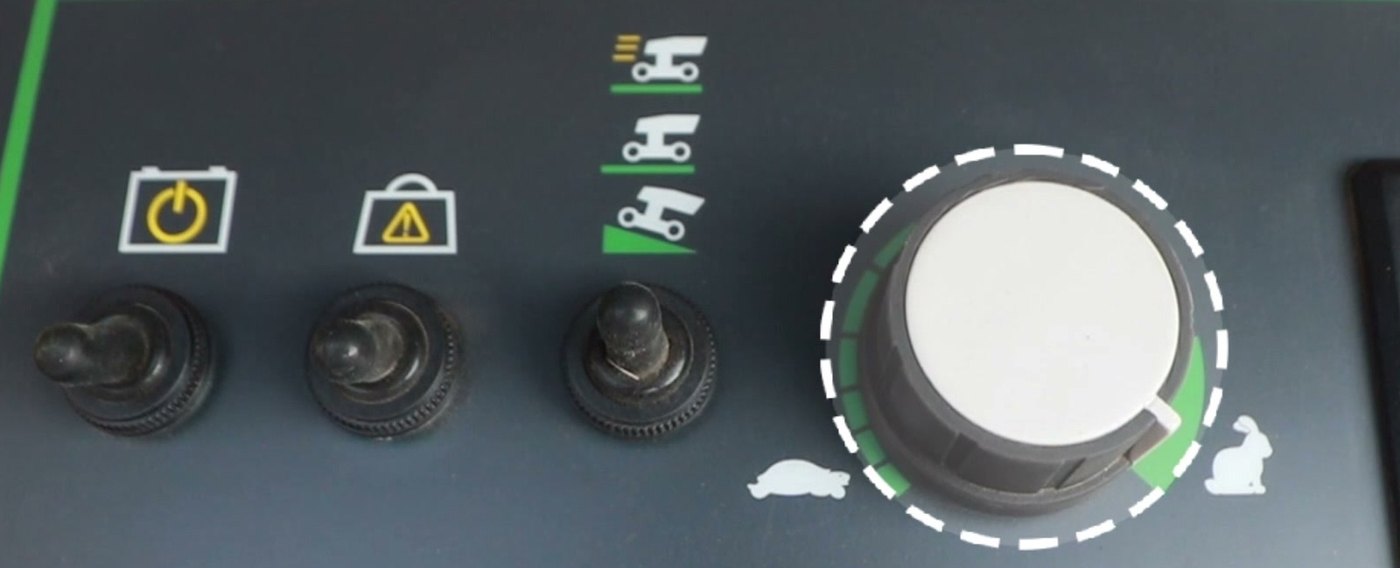

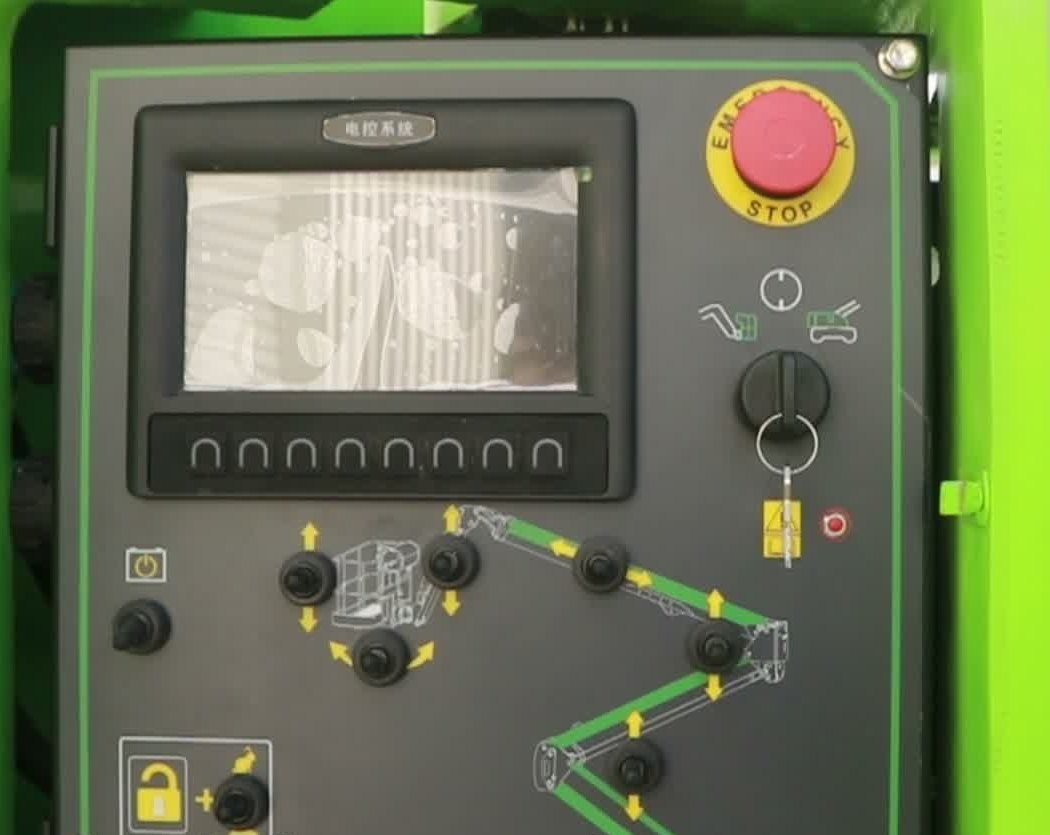

Dual control consoles with proportional joysticks and hare / tortoise speed selector

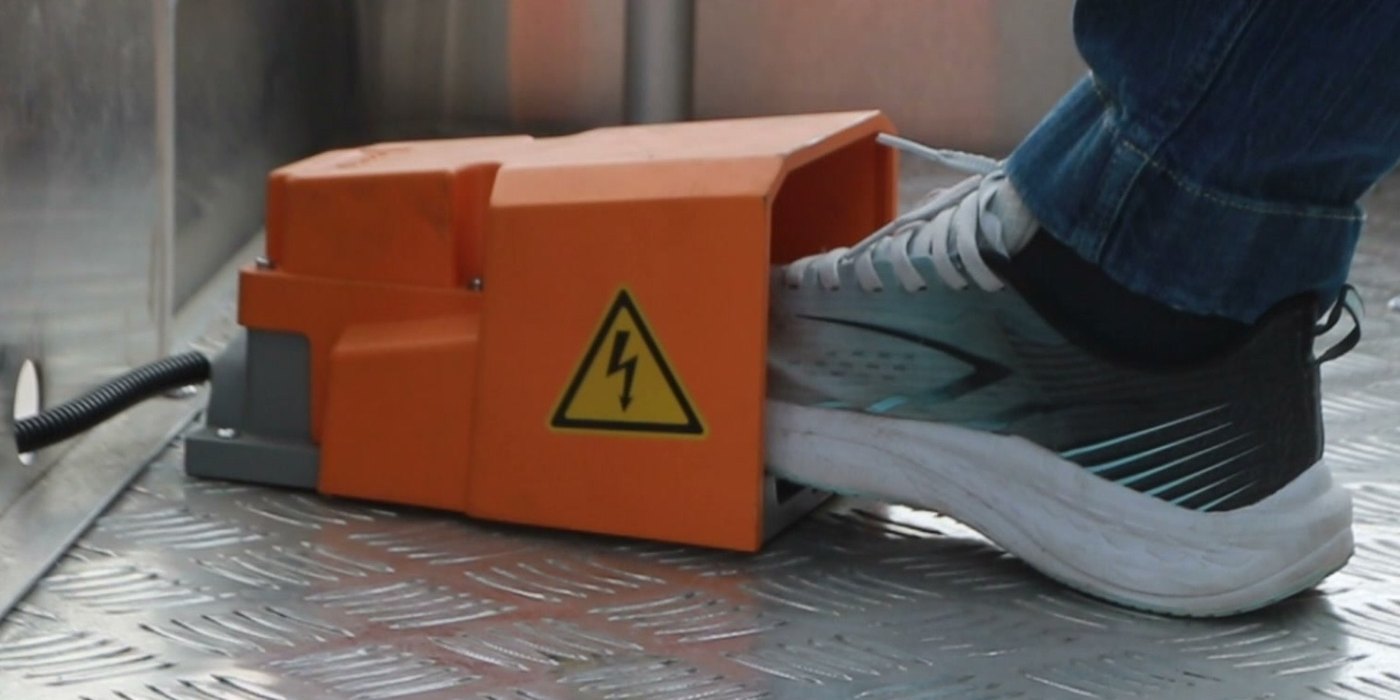

Dead-man foot switch and emergency stop push-buttons on platform and chassis
Load-sensing device with audible/visual alarm and overload lift cut-out (>300 kg)
Automatic electro-hydraulic basket levelling (±1.5°)
3.0° tilt sensor with audible alarm and travel restriction
Ground-accessible manual gravity emergency lowering system
Counterbalance check valves integrated directly into all hydraulic cylinders
Certified safety harness anchor points to EN 795 and solid 33×12-20 off-road tyres
